Super Winch mounting plate modification notes

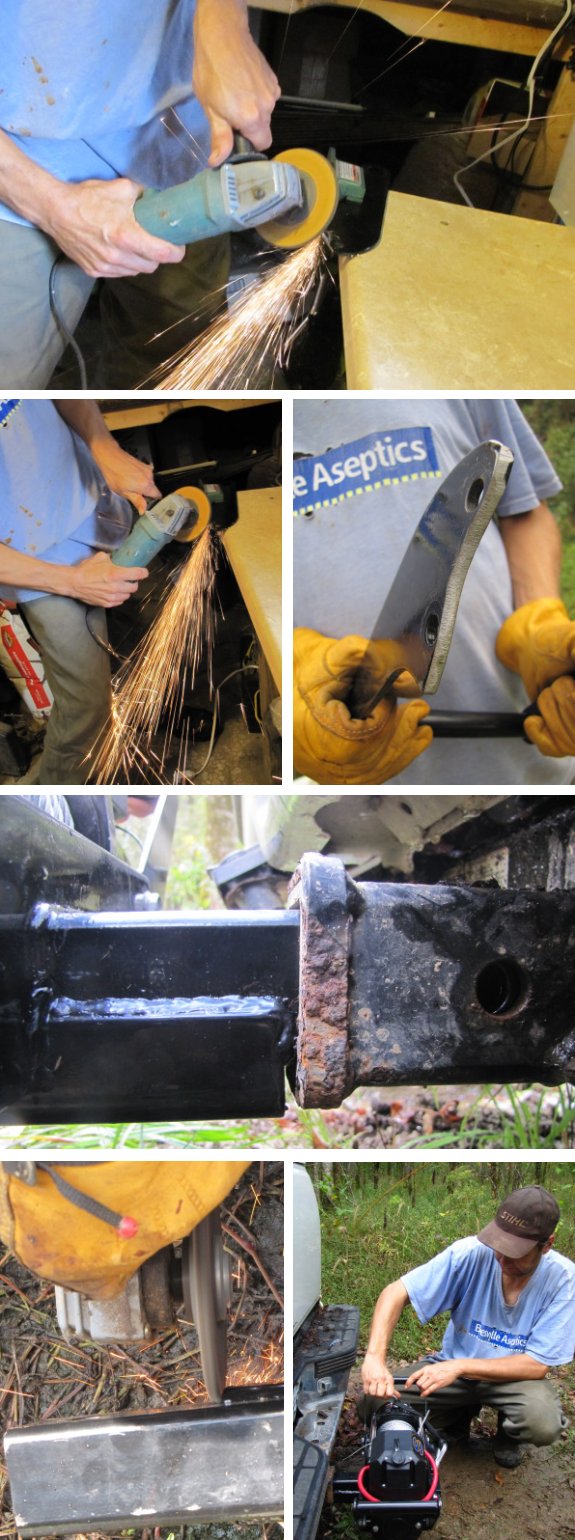

Super Winch mount plate modification do it yourself grinding


The right handle of this special hitch receiver mount needed a bit of grinding for the Super Winch to snug up with it.

More grinding was needed for the part that slides into the receiver.

The next step will be to run a heavy gauge wire from the battery to a connector near the bumper.



Join the Walden Effect!

Download a free copy of Small-Scale No-Till Gardening Basics when you subscribe to our behind-the-scenes newsletter.

Anna Hess's books
Want more in-depth information? Browse through our books.

Or explore more posts by date or by subject.

About us: Anna Hess and Mark Hamilton spent over a decade living self-sufficiently in the mountains of Virginia before moving north to start over from scratch in the foothills of Ohio. They've experimented with permaculture, no-till gardening, trailersteading, home-based microbusinesses and much more, writing about their adventures in both blogs and books.



Want to be notified when new comments are posted on this page? Click on the RSS button after you add a comment to subscribe to the comment feed, or simply check the box beside "email replies to me" while writing your comment.


RSS
Wire gauge
Just a word of caution, running from the battery to the rear bumper is a very long run for 12v for a high draw like a winch. Make sure you size your wire appropriately or it may overheat the motor on the winch. Copper isn't very cheap right now... so it's potentially an expensive proposition. It might even be cheaper to keep a battery on hand just for that use to run the winch when the truck gets stuck... just be sure not to run the battery down too far between charges.
Comment by Shannon — Tue Sep 27 23:59:23 2011
Wiring up the winch
That's an excellent tip --- thank you! I hope Mark bought the right wire when he went to the store yesterday...
Comment by anna — Wed Sep 28 08:38:16 2011
Winch Wire

You'll also want a heavy duty switch at the battery (or some other way to disconnect it). You don't want a nick under the truck (easier to do thatn you might think) to drain your battery or cause a fire.

--Mike

schomestead.com

Comment by Michael Smith — Wed Sep 28 09:54:43 2011
Super Winch
I would suspect that it is a slow speed high gear ratio winch, and if that is the case it would require less current than a high speed winch. Never the less the voltage drop from the front of the truck to the back of the truck and the quick disconnect to the winch would be a significant voltage drop, so a large gauge wire wire would be appropriate. I would recommend running the wire through an old garden hose to prevent chaffing to ground and causing a fire.
Comment by zimmy — Wed Sep 28 16:51:40 2011
Wiring a winch
Mike and Zimmy --- We've really appreciated all of the comments like this on Mark's winch posts. It's helped us clarify a lot about the importance of the wiring process. Stay tuned for Mark's final wiring decision!
Comment by anna — Thu Sep 29 14:46:46 2011
